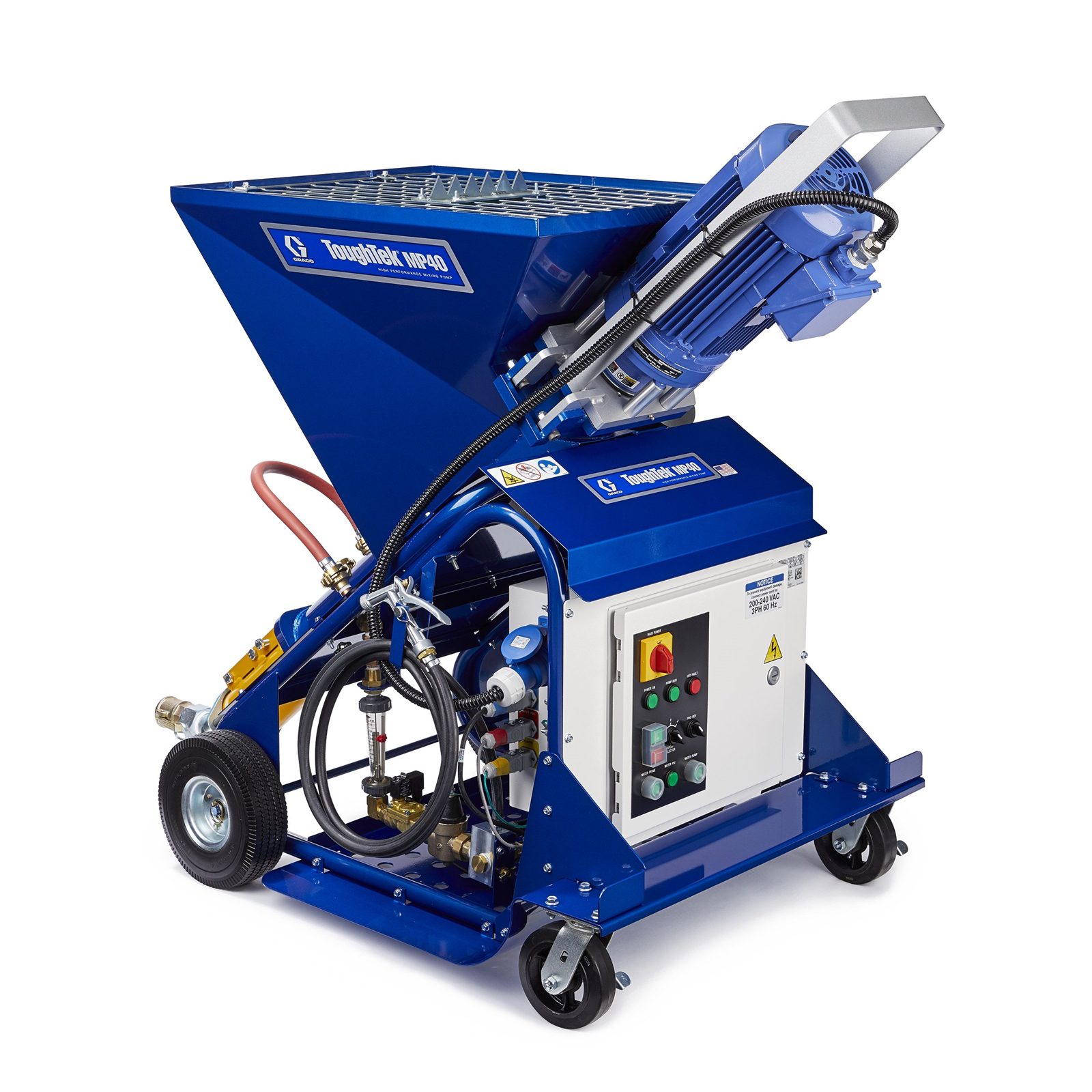

ToughTek MP20 and MP40 Mixing Pump

Self-leveling made easy
Mix, pump and apply pre-blended cementitious construction materials with a single, easy-to-use machine. With the ToughTek MP20 and MP40 Mixing Pump, water is automatically added to the mixing chamber. All you do is set the water flow rate, add material to the hopper and you’re ready to begin. Ideal for concrete repair or restoration and flooring applications.

Set water flow rate according to manufacturer’s directions
Break bags into hopper
Material and water are mixed within the mixing chamber
Once you set the water flow rate, you can run it all day long
Steady water input results in consistent material and flow – batch after batch, day after day
Two models: MP20 and MP40 (for high output applications)
Formerly named Machine Technologies MP25

Materials
Handles most pre-blended cementitious construction materials such as:

• Self-leveling underlayments
• Pre-blended topping materials
• Pre-blended non-shrink grouts

Typical Applications

• Correct uneven floors
• Repair damaged concrete
• Provide a smooth surface for carpet, tile or other floor covering
• Structural grouting of steel columns
• Anchoring applications

Designed with contractors in mind

• Compact, easy to maneuver
• Easy to operate with variable speed control
• 425 psi (29 bar) pumping pressure
• Vertical pumping distance: 60 feet (18 m)
• Horizontal pumping distance: 200 feet (61 m)
• Rugged hopper with bag breaker – holds six 50-lb (23 kg) bags
• Power MP20: 230V, 30A, 1-ph
• Power MP40: 230V, 30A, 3-ph
• Output MP20: up to 25 lpm (50 cu ft/hr)
• Output MP40: up to 50 lpm (100 cu ft/hr)

Fast clean-up and easy maintenance

• Built-in cleanout sprayer and on-board water line makes it easy to clean out hopper
• Drain port can be removed for thorough cleaning and rinsing
• Mixing shaft can be quickly removed
